Specification
| Brand | ASRock |
| Model | B760M-HDV/M.2 D4 |
| CPU Socket | LGA1700 supporting 14th, 13th, and 12th Gen Intel Core Processors |
| Chipset | Intel B760 |
| Memory Type | Dual Channel DDR4 Memory Technology |
| Memory Slots | 2 x DDR4 DIMM slots |
| Maximum Memory Capacity | Supports up to 64GB of system memory |
| Memory Speed Support | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) MHz |

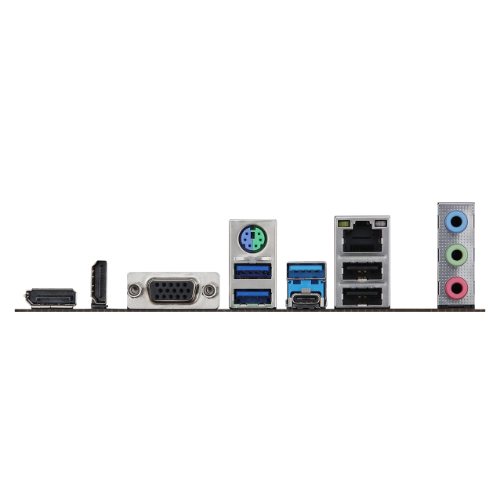

| Graphics Output | 1 x HDMI, 1 x DisplayPort 1.4, 1 x D-Sub (VGA) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Storage Interface | 1 x Hyper M.2 Socket (PCIe Gen4 x4), 1 x M.2 Socket (PCIe Gen4 x4), 4 x SATA3 6.0 Gb/s connectors |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Rear USB Ports | 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Internal USB Headers | 1 x USB 3.2 Gen1 Header, 2 x USB 2.0 Headers |
| Form Factor | Micro ATX Form Factor (24.4 cm x 20.1 cm) |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Operating System Compatibility | Microsoft Windows 10 64-bit / 11 64-bit |
| Power Phase Design | 7+1+1 Power Phase Design |
Highlights
Intel B760 Chipset Support
This motherboard features the Intel B760 chipset, providing full compatibility for 14th, 13th, and 12th Gen Intel Core processors using the LGA 1700 socket, ensuring a stable foundation for modern computing tasks.
DDR4 Memory Optimization
Equipped with two DIMM slots supporting dual-channel DDR4 memory technology, this board accommodates up to 64GB of RAM with overclocking support reaching speeds of 5333+(OC) MHz for enhanced system responsiveness.
High-Speed M.2 Storage
The board includes a Hyper M.2 slot that supports PCIe Gen4 x4 mode, delivering data transfer speeds of up to 64Gb/s, which significantly reduces load times for operating systems and demanding applications.
Versatile Connectivity
Features include a PCIe 4.0 x16 slot for modern graphics cards, along with HDMI, DisplayPort, and D-Sub output options, providing flexible display configurations for integrated processor graphics.
