Specification
| Brand | ASRock |

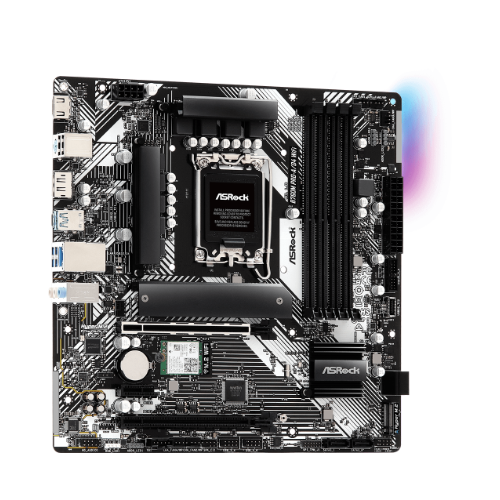

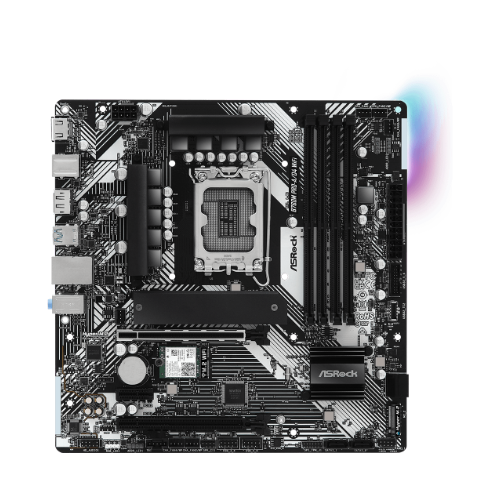

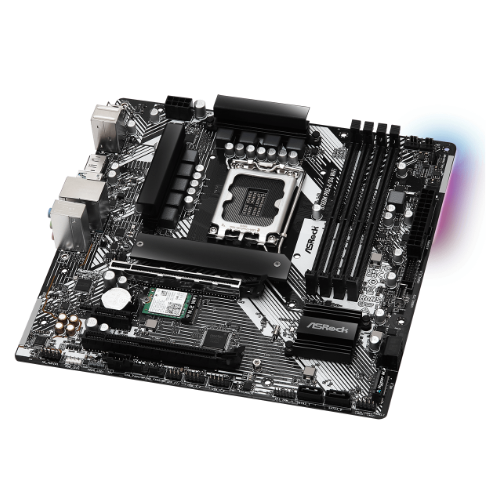

| Product Name | B760M Pro-A/D4 WiFi |
| Form Factor | Micro-ATX |
| CPU Socket | LGA1700 supporting 14th, 13th, and 12th Gen Intel Core Processors |
| Chipset | Intel B760 |
| Memory Type | Dual Channel DDR4 Memory Technology |
| Memory Slots | 4 x DDR4 DIMM slots |
| Maximum Memory Capacity | 128GB |
| Memory Speed Support | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) MHz |
| Expansion Slots (PCIe) | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Graphics Output Options | HDMI and DisplayPort 1.4 |
| Storage Interface | 3 x Hyper M.2 slots (PCIe Gen4 x4), 4 x SATA3 6.0 Gb/s ports |
| Audio | 7.1 CH HD Audio with Realtek ALC897 Audio Codec |
| Ethernet LAN | Dragon 2.5 Gigabit LAN |
| Wireless Connectivity | 802.11ax Wi-Fi 6E Module |
| Bluetooth | Bluetooth 5.3 |
| USB Rear Ports | 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Internal Headers | 1 x SPI TPM header, 1 x Chassis Intrusion and Speaker header, 1 x RGB LED header, 3 x Addressable LED headers |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Operating System Compatibility | Microsoft Windows 10 64-bit / 11 64-bit |
Highlights
Intel B760 Chipset Support
Designed for 14th, 13th, and 12th Gen Intel Core processors, this motherboard utilizes the LGA1700 socket and B760 chipset to provide a stable foundation for high-performance computing and multitasking.
DDR4 Memory Optimization
Features 4 DIMM slots supporting dual-channel DDR4 memory technology with speeds up to 5333+(OC) MHz, allowing for high-bandwidth data processing and efficient system responsiveness.
Integrated Wi-Fi 6E Connectivity
Equipped with an 802.11ax Wi-Fi 6E module, this board delivers high-speed wireless networking, lower latency, and improved stability in congested environments compared to previous wireless standards.
High-Speed M.2 Storage
Includes 3 M.2 slots, including a Blazing M.2 socket that supports PCIe Gen5 x4 (128Gb/s) for ultra-fast NVMe SSD performance, ensuring rapid system boot times and quick file transfers.
