Specification
| Brand | ASRock |

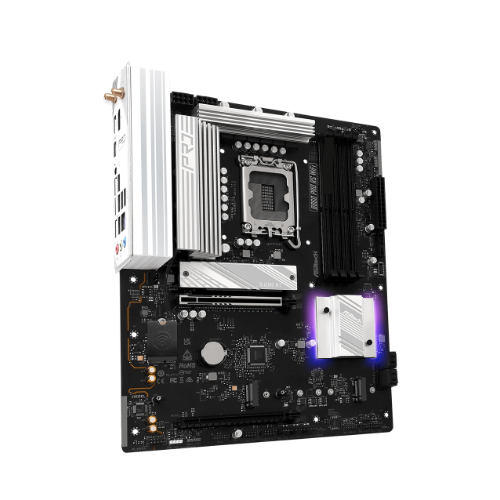

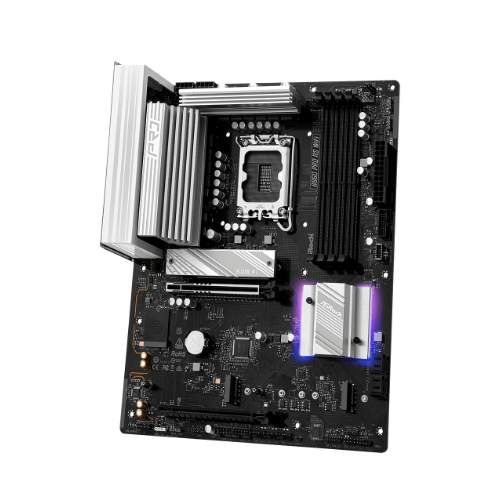

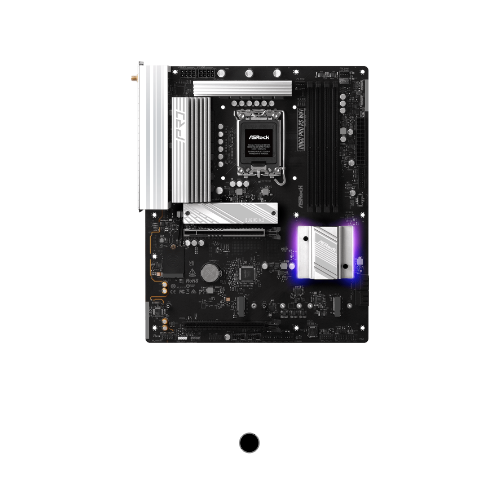

| Product Name | B860 Pro RS WiFi |
| Product Type | Motherboard |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| Supported Processors | Supports Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 DIMM |
| Memory Slots | 4 x DDR5 DIMM slots |
| Maximum Memory Capacity | Supports up to 192GB (depending on CPU memory controller) |
| Memory Architecture | Dual Channel DDR5 memory technology |
| Expansion Slots | PCIe 5.0 x16 slot, PCIe 4.0 x16 slot, and PCIe 3.0 x1 slots |
| Storage Interface | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4), and SATA3 6.0 Gb/s ports |
| Wireless Connectivity | Integrated Wi-Fi 6E/7 module (specification varies by region) with Bluetooth support |
| Ethernet | 2.5 Gigabit LAN controller |
| Audio | 7.1 CH HD Audio with Nahimic Audio enhancement |

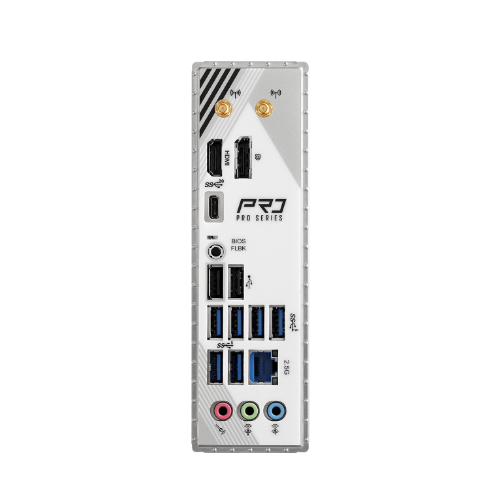

| USB Ports (Rear) | USB 3.2 Gen1 Type-A, USB 3.2 Gen2 Type-C, and USB 2.0 ports |
| Internal Headers | USB 3.2 Gen2x2 Header, USB 3.2 Gen1 Headers, and USB 2.0 Headers |
| Video Outputs | HDMI and DisplayPort 1.4 for integrated graphics |
| Form Factor | ATX Form Factor |
| PCB Construction | 8-Layer PCB with 2oz Copper |
| Operating System Compatibility | Microsoft Windows 11 64-bit |
Highlights
The ASRock B860 Pro RS WiFi is engineered to support the latest DDR5 memory modules, featuring optimized trace layouts that allow for higher frequency stability. It supports dual-channel DDR5 memory technology with speeds reaching 8000+ MHz (OC) depending on the CPU and memory configuration. This high-bandwidth architecture significantly improves system responsiveness and data processing speeds for memory-intensive applications and gaming.
Equipped with an integrated 802.11ax Wi-Fi 6E module, this motherboard provides access to the 6GHz spectrum, which reduces interference and congestion in dense environments. It supports dual-band 2x2 Wi-Fi and Bluetooth 5.3, ensuring high-speed wireless data transfers and reliable connectivity for peripherals. This integration allows for seamless streaming, low-latency online gaming, and efficient file transfers without the need for additional expansion cards.
The motherboard features multiple M.2 slots, including a primary Blazing M.2 socket that supports PCIe Gen5 x4 speeds up to 128Gb/s. This interface provides the necessary bandwidth for the latest high-performance NVMe SSDs, drastically reducing game load times and file transfer durations. Additional M.2 slots support PCIe Gen4 x4, ensuring comprehensive storage expandability for modern high-capacity drives.
To ensure stable performance under heavy workloads, the ASRock B860 Pro RS WiFi utilizes a Dr.MOS power stage design. This integrated power solution optimizes voltage regulation and thermal efficiency, providing clean and consistent power to the CPU. The inclusion of large aluminum heatsinks further enhances heat dissipation, maintaining system stability during extended periods of high-performance operation.
