Specification
| Brand | ASRock |

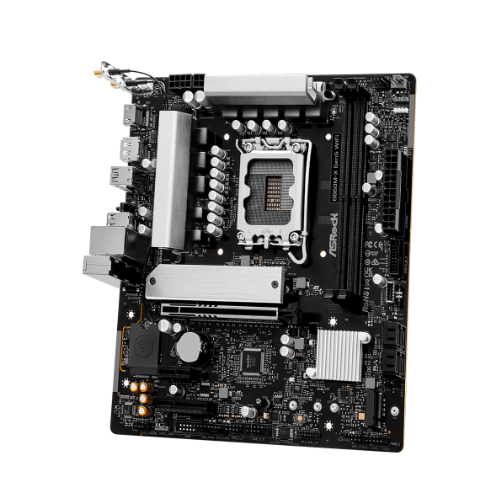

| Product Name | B860M-X Gen5 WiFi |
| Product Type | Micro-ATX Motherboard |
| Chipset | Intel B860 Chipset |
| CPU Socket | LGA 1851 |
| Memory Slots | 2 x DDR5 DIMM slots |
| Memory Support | Supports DDR5 non-ECC, un-buffered memory up to 96GB |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x1 slot |
| Storage Interface | 1 x Hyper M.2 socket (PCIe Gen5 x4), 1 x M.2 socket (PCIe Gen4 x4), 4 x SATA3 6.0 Gb/s connectors |
| Wireless Connectivity | Integrated Wi-Fi 6E module supporting 802.11ax standard |
| Bluetooth | Integrated Bluetooth wireless technology |
| Ethernet | Dragon 2.5 Gigabit LAN controller |
| Audio | 7.1 CH HD Audio with Realtek ALC897 Audio Codec |
| Rear USB Ports | 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Internal USB Headers | 1 x USB 3.2 Gen1 header, 2 x USB 2.0 headers |
| Video Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Form Factor | Micro-ATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Operating System Compatibility | Microsoft Windows 11 64-bit |
Highlights
The ASRock B860M-X Gen5 WiFi features a reinforced PCIe 5.0 x16 slot, designed to accommodate the latest high-bandwidth graphics cards. By supporting the PCIe 5.0 standard, this motherboard provides double the bandwidth of the previous generation, ensuring optimal data transfer speeds and future-proofing your system for next-generation GPU architectures.
Equipped with an 802.11ax Wi-Fi 6E module, this motherboard utilizes the 6GHz spectrum to deliver faster wireless speeds, lower latency, and improved capacity in congested network environments. This integration provides a stable and high-speed wireless connection, essential for seamless online gaming, high-definition streaming, and large file transfers without the need for wired Ethernet.
This motherboard supports the latest DDR5 memory modules, offering significantly higher frequencies and improved power efficiency compared to DDR4. The optimized memory trace layout ensures signal integrity and stability, allowing users to take full advantage of high-speed memory kits to enhance overall system responsiveness and multitasking performance.
The board includes multiple M.2 slots, including support for PCIe Gen4 x4 NVMe SSDs. These interfaces provide rapid data read and write speeds, drastically reducing system boot times and game loading screens. The dedicated M.2 design ensures that high-performance storage devices operate within optimal temperature ranges for sustained reliability during intensive workloads.
