Specification
| Brand | ASRock |
| Model | H610M-HVS/M.2 R2.0 |
| CPU Socket | LGA1700 supporting 14th, 13th, and 12th Gen Intel Core processors |
| Chipset | Intel H610 |
| Memory Type | Dual Channel DDR4 Memory Technology |
| Memory Slots | 2 x DDR4 DIMM slots |
| Maximum Memory Capacity | Up to 64GB |
| Memory Speed | Supports DDR4 non-ECC, un-buffered memory up to 3200 MHz |

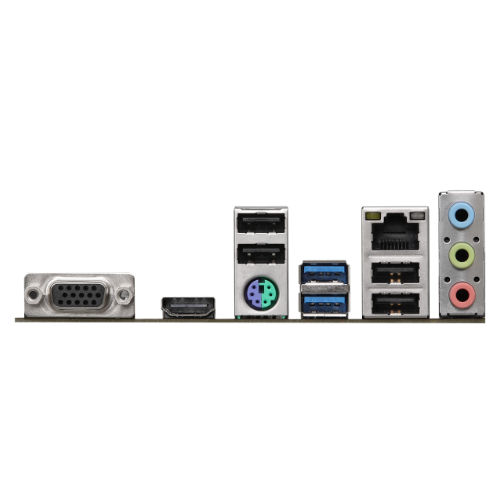

| Graphics Output | HDMI and D-Sub (VGA) ports supporting dual monitor output |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Storage Interface | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen3 x4 mode; 4 x SATA3 6.0 Gb/s connectors |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Rear USB Ports | 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports |
| Internal USB Headers | 1 x USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports), 1 x USB 2.0 Header (supports 2 USB 2.0 ports) |
| Form Factor | Micro ATX Form Factor (8.9-in x 7.7-in, 22.6 cm x 19.6 cm) |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| Operating System Compatibility | Microsoft Windows 10 64-bit / 11 64-bit |
| Power Phase Design | 5 Power Phase Design |
Highlights
Intel H610 Chipset Support
This motherboard supports 14th, 13th, and 12th Gen Intel Core processors using the LGA1700 socket, providing a stable foundation for modern computing tasks and efficient power delivery for standard desktop workloads.
Ultra M.2 Storage Interface
Equipped with an M.2 slot supporting PCIe Gen3 x4 modules, this board delivers data transfer speeds up to 32Gb/s, significantly reducing system boot times and accelerating application loading compared to traditional SATA storage.
Dual-Channel DDR4 Memory
Features two DIMM slots supporting DDR4 non-ECC un-buffered memory with speeds up to 3200 MHz. The dual-channel architecture optimizes memory bandwidth to improve overall system responsiveness during multitasking.
Versatile Display Connectivity
Includes both HDMI and D-Sub (VGA) output ports, allowing for flexible monitor configurations. The HDMI port supports 4K resolution at 60Hz, ensuring high-definition visual output for integrated graphics solutions.
