Specification
| Brand | ASRock |

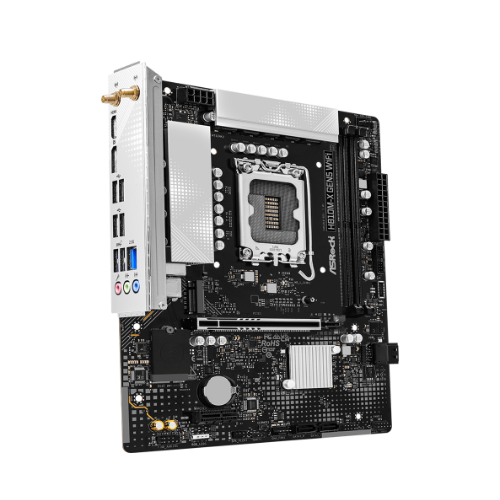

| Product Name | H810M-X Gen5 WiFi |
| Socket | LGA1851 for Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 |
| Form Factor | Micro-ATX |
| Memory Slots | 2 x DDR5 DIMM slots |
| Memory Support | Supports DDR5 non-ECC, un-buffered memory up to 5600 MHz |
| Maximum Memory Capacity | Up to 96GB (depending on CPU memory specifications) |
| PCIe Expansion Slots | 1 x PCIe 5.0 x16 slot (PCIE1), 1 x PCIe 3.0 x1 slot |
| Graphics Output | 1 x HDMI 2.1 TMDS Compatible, 1 x DisplayPort 1.4 |
| Storage Interface | 1 x Hyper M.2 Socket (PCIe Gen4 x4), 4 x SATA3 6.0 Gb/s connectors |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H/8111K) |
| Wireless Connectivity | 802.11ax Wi-Fi 6E module supporting 2.4/5/6GHz bands |
| Bluetooth | Bluetooth 5.3 wireless technology |
| Rear USB Ports | 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 ports |
| Internal USB Headers | 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports), 1 x USB 2.0 header (supports 2 USB 2.0 ports) |
| Fan Headers | 1 x CPU Fan Connector (4-pin), 2 x Chassis Fan Connectors (4-pin) |
| Power Connector | 1 x 24-pin ATX power connector, 1 x 8-pin 12V power connector |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Operating System Compatibility | Microsoft Windows 10 64-bit / 11 64-bit |
Highlights
LGA1851 Processor Support
The ASRock H810M-X Gen5 is engineered with the LGA1851 socket, providing full compatibility with the latest Intel Core processors to ensure high-performance computing and efficient power delivery for demanding workloads.
PCIe 5.0 Expansion Slot
Equipped with a PCIe 5.0 x16 slot, this motherboard supports next-generation graphics cards and high-speed expansion devices, offering double the bandwidth of PCIe 4.0 for superior data transfer rates.
Integrated Wi-Fi Connectivity
The board features an integrated wireless module, providing reliable and high-speed network connectivity without the need for additional expansion cards, streamlining your desktop setup.
DDR5 Memory Architecture
Utilizing the latest DDR5 memory standard, this motherboard enables faster data rates, improved power efficiency, and increased memory bandwidth compared to previous generations for smoother multitasking.
