Specification
| Brand | ASRock |
| Product Name | Z890 Pro RS WiFi |
| Product Type | Motherboard |
| Chipset | Intel Z890 |
| CPU Socket | LGA 1851 for Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 Dual Channel Memory Technology |
| Memory Slots | 4 x DDR5 DIMM slots |
| Maximum RAM Capacity | Up to 256GB (depending on CPU) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots, 1 x PCIe 4.0 x1 slot |
| Graphics Output | 1 x HDMI 2.1 TMDS/FRL 8G, 1 x Thunderbolt 4 / USB4 Type-C |
| Storage Interface | 1 x Blazing M.2 (PCIe Gen5 x4), 4 x Hyper M.2 (PCIe Gen4 x4), 4 x SATA3 6.0 Gb/s ports |
| Audio | 7.1 CH HD Audio with Realtek ALC897 Audio Codec, Nahimic Audio support |
| Ethernet | Dragon RTL8125BG 2.5 Gigabit LAN |
| Wireless Connectivity | Wi-Fi 7 802.11be module supporting 2.4/5/6GHz bands |
| Bluetooth | Bluetooth 5.4 wireless technology |

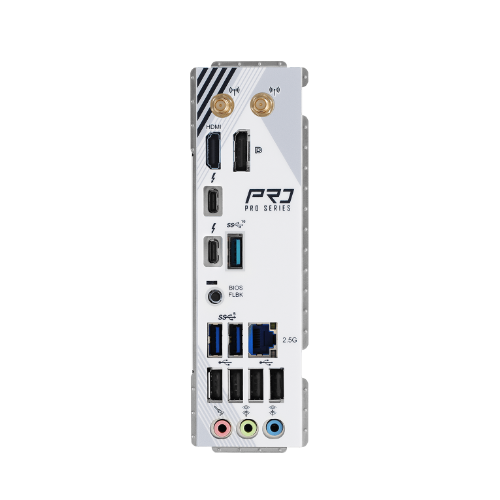

| USB Ports (Rear) | 1 x Thunderbolt 4 / USB4 Type-C, 1 x USB 3.2 Gen2 Type-A, 6 x USB 3.2 Gen1 Type-A |
| USB Ports (Front) | 1 x USB 3.2 Gen2x2 Type-C header, 2 x USB 3.2 Gen1 headers, 2 x USB 2.0 headers |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Operating System Compatibility | Microsoft Windows 11 64-bit |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
Highlights
The ASRock Z890 Pro RS WiFi is built on the Intel Z890 chipset, providing full support for the latest Intel Core Ultra processors (Series 2) via the LGA 1851 socket. This platform architecture enables advanced system performance and compatibility with the newest generation of high-efficiency computing hardware, ensuring your build is ready for modern processing demands.
Equipped with four DDR5 DIMM slots, this motherboard supports dual-channel memory architecture with speeds capable of reaching 9200+ MHz (OC). The board utilizes reinforced DIMM slots and optimized signal traces to ensure stability and performance, allowing users to maximize bandwidth for memory-intensive applications and gaming workloads.
This model features integrated Wi-Fi 7 (802.11be) technology, providing significantly higher throughput and lower latency compared to previous wireless standards. Additionally, it includes a Dragon 2.5Gb/s LAN port, offering high-speed wired networking for stable, low-latency data transfers and online gaming experiences.
The motherboard features a PCIe 5.0 x16 slot, providing double the bandwidth of PCIe 4.0 for high-performance graphics cards. For storage, it includes a Blazing M.2 socket that supports PCIe Gen5 x4 speeds up to 128Gb/s, ensuring rapid data access and reduced load times for professional software and modern game titles.
