Specification
| Brand | ASRock |

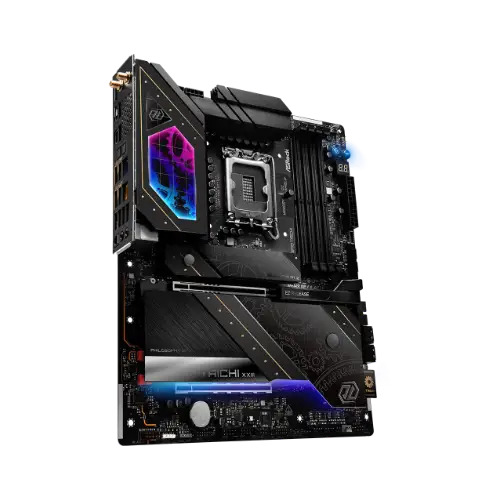

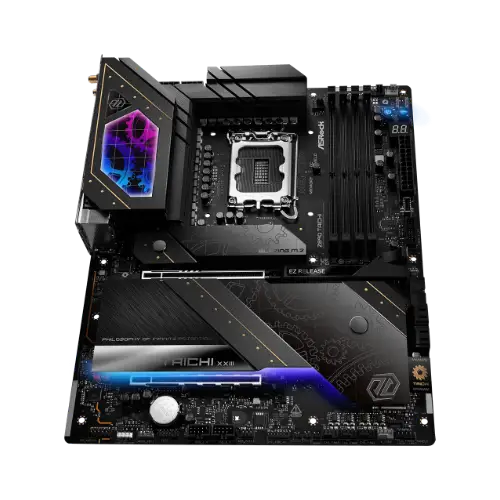

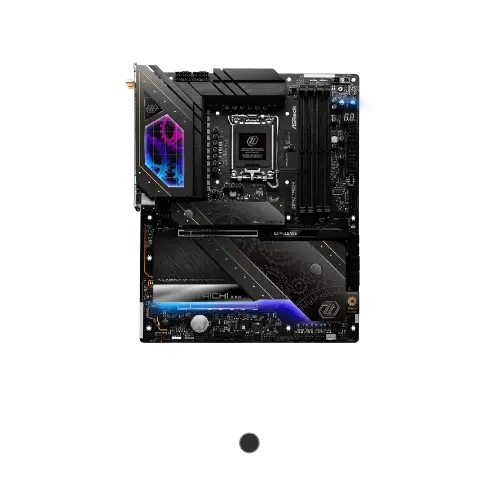

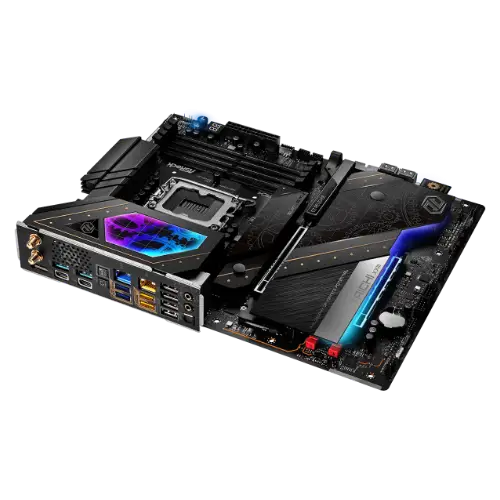

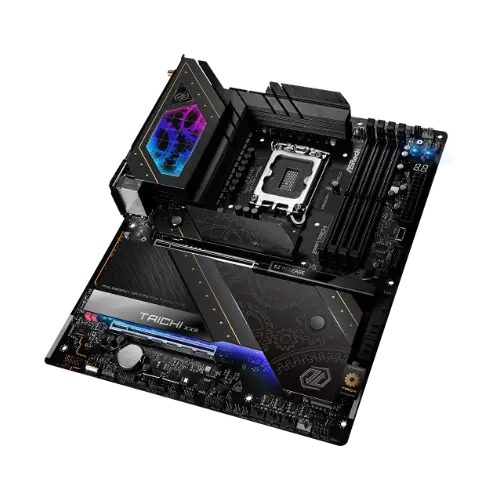

| Product Name | Z890 Taichi |
| Form Factor | ATX Form Factor (12.0-in x 9.6-in) |
| CPU Socket | LGA 1851 for Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Power Phase Design | 20+1+2+1+1 Power Phase design |
| VCore VRM | 110A Smart Power Stage (SPS) |
| Memory Type | Dual Channel DDR5 Memory Technology |
| Memory Slots | 4 x DDR5 DIMM slots |
| Maximum Memory Capacity | Up to 256GB (depending on CPU) |
| PCIe Slots | PCIe 5.0 x16 slot (PCIE1), PCIe 4.0 x16 slot (PCIE2), PCIe 4.0 x1 slot (PCIE3) |
| Graphics Output | 2 x Thunderbolt 4 / USB4 Type-C ports supporting up to 8K resolution |
| Audio | 7.1 CH HD Audio with Realtek ALC4082 Codec and ESS SABRE9218 DAC |
| LAN | Killer E5000 5 Gigabit LAN and Intel 2.5 Gigabit LAN |
| Wireless Connectivity | Wi-Fi 7 802.11be Module supporting 2.4/5/6GHz bands and Bluetooth 5.4 |
| Storage Interfaces | 1 x Blazing M.2 (PCIe Gen5 x4), 4 x Hyper M.2 (PCIe Gen4 x4), 4 x SATA3 6.0 Gb/s ports |
| USB Ports (Rear) | 2 x Thunderbolt 4 / USB4 Type-C, 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A |
| Cooling Solution | Enlarged Heatsink Armor with active cooling fan and multi-layer M.2 heatsinks |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Operating System Compatibility | Microsoft Windows 11 64-bit |
Highlights
The ASRock Z890 Taichi features a robust 20+1+2+1+1 power phase design, utilizing 110A Smart Power Stage (SPS) technology for the VCore. This configuration ensures smooth and efficient power delivery to the processor, providing high current capacity and precise voltage regulation. The design is engineered to maintain system stability under heavy workloads and intensive overclocking scenarios.
To manage the thermal output of the high-performance power delivery system, the motherboard is equipped with an enlarged heatsink armor. This cooling solution increases the surface area for heat dissipation, effectively lowering temperatures for the VRM components. This ensures sustained performance and longevity for the motherboard even during prolonged high-load operations.
The Z890 Taichi supports PCIe 5.0 technology for both the primary expansion slot and the M.2 storage interface. This provides double the bandwidth of PCIe 4.0, enabling faster data transfer speeds for high-end graphics cards and the latest NVMe SSDs. This future-ready connectivity ensures compatibility with next-generation hardware and minimizes bottlenecks in data-intensive tasks.
This motherboard is equipped with high-speed networking options, including integrated Wi-Fi 7 technology. Wi-Fi 7 offers increased throughput, lower latency, and improved reliability compared to previous generations. Additionally, the board features high-speed wired LAN connectivity, providing a stable and fast network foundation for online gaming, streaming, and professional data transfers.
